Winton Wood Chipper 5″

Winton Wood Chipper 5″


Weight 195 kg
Dimensions 135 × 84 × 155 cm
Working Width (cm) 13
Tractor Range (HP) 14-48
Linkage Type Cat 1
Lower Linkage Width (cm) 71-84
Chipper Feed Type Manual
Power PTO
Includes Shear Bolt PTO Shaft

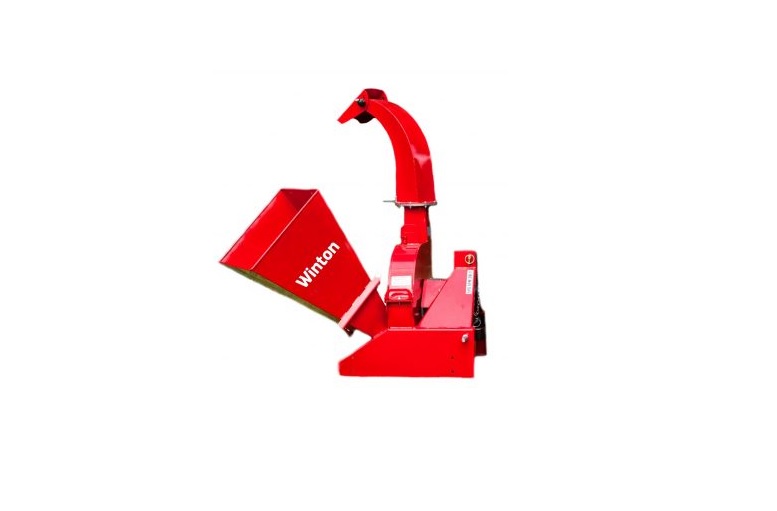

The Winton 5 Inch Wood Chipper is a versatile machine, making the perfect addition to any smallholding. It will chip wood up to five inches in diameter.

The WWC 5″ is useful for clearing woodlands and smallholdings throughout the year. It will take branches with a few leaves. However, if the leaf to branch ratio is too high it will need to be followed with more woody material to clear the output. This wood chipper has a 360-degree output chute for precision control.

It is simple to operate with four cutting blades on the flywheel and one stationary bed blade. The flywheel and bed blades are reversible and can all be flipped over when worn. There is also adjustment on the bed blade from the outside of the unit to ensure that the bed and flywheel blades are always at the optimum position when working for clean chipping and to avoid clogging. It also has a shear bolt PTO for enhanced safety.

The Winton 5 Inch Wood Chipper can be attached to the 3 point linkage of a range of small and also compact tractors. It is quick and simple to fit and operate, but also low maintenance.
